HELIX delta-T Design Reports

Helix delta-T6 has more than 70 design reports which can be viewed, printed and exported to other applications such as MS Word® Excel® or PDF® file formats plus others. You can also choose reports from a list and compile a single composite report and save it as PDF® file.

You can view a sample report by clicking the following link: Sample Design report - pdf file

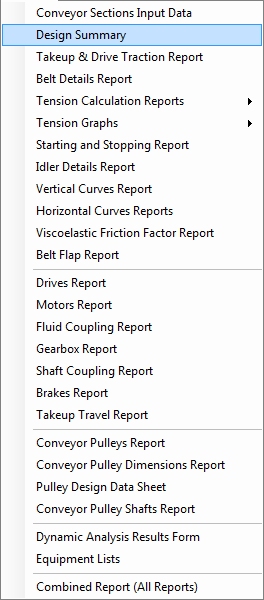

Reports menu Image

View of some sample reports follow:

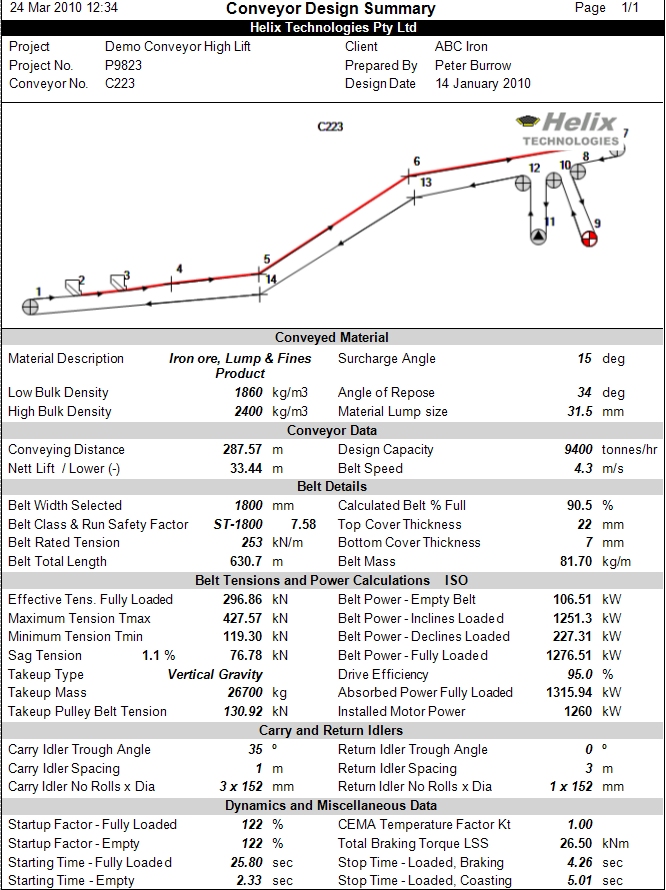

Design Summary

Design Summary Image

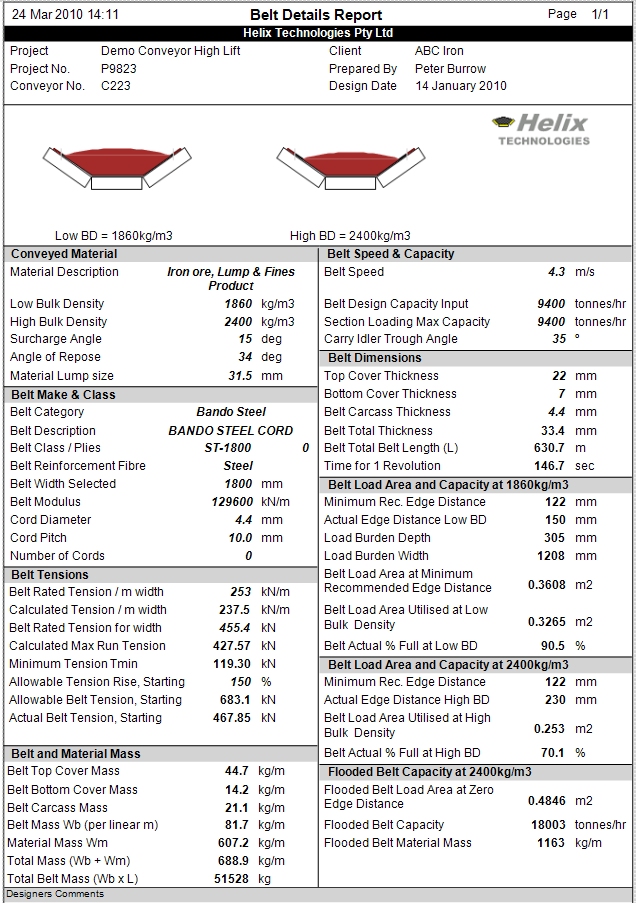

Belt Details

Belt Details Image

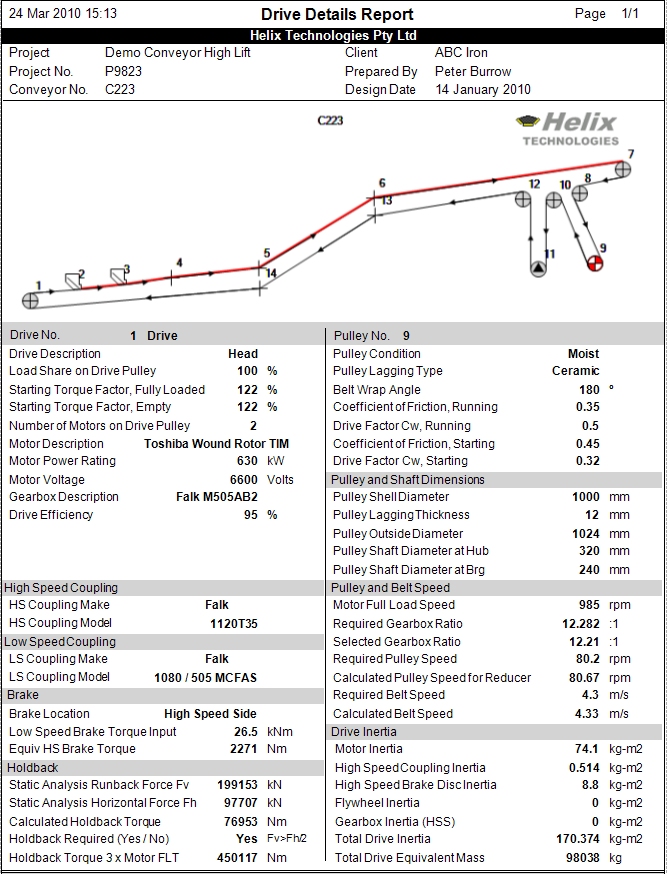

Drive Details

Drive Details Image

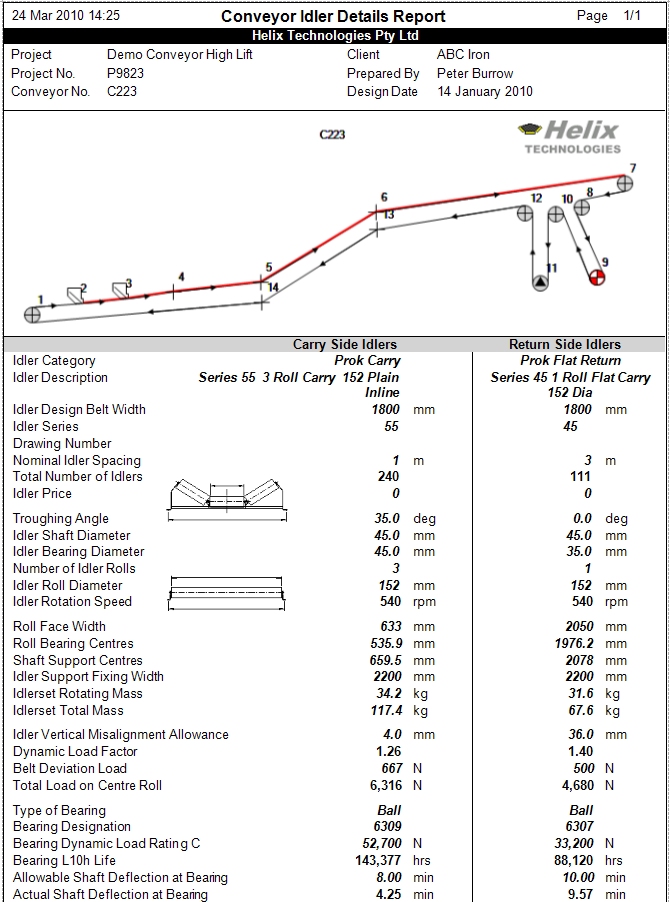

Idler Details

Idler Details Image

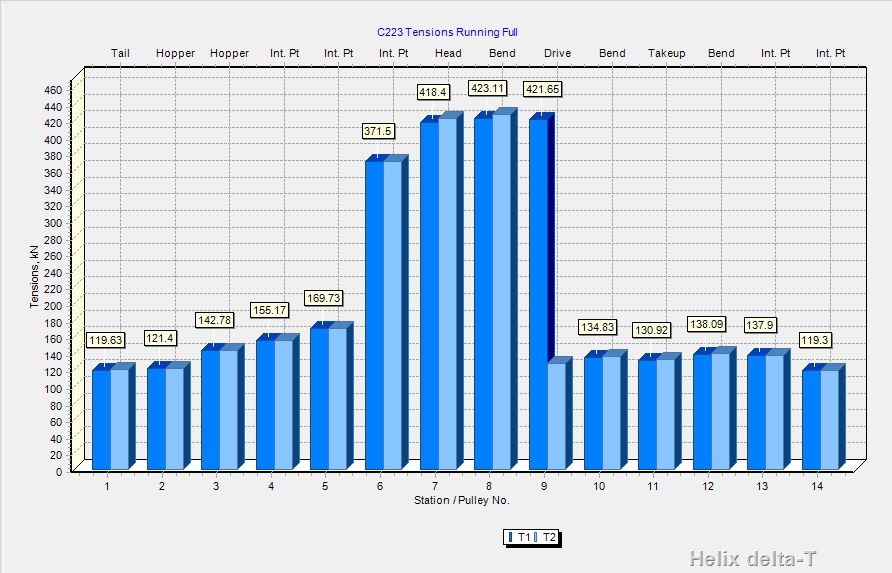

Belt Tension Graphs

Belt Tension Graphs Image

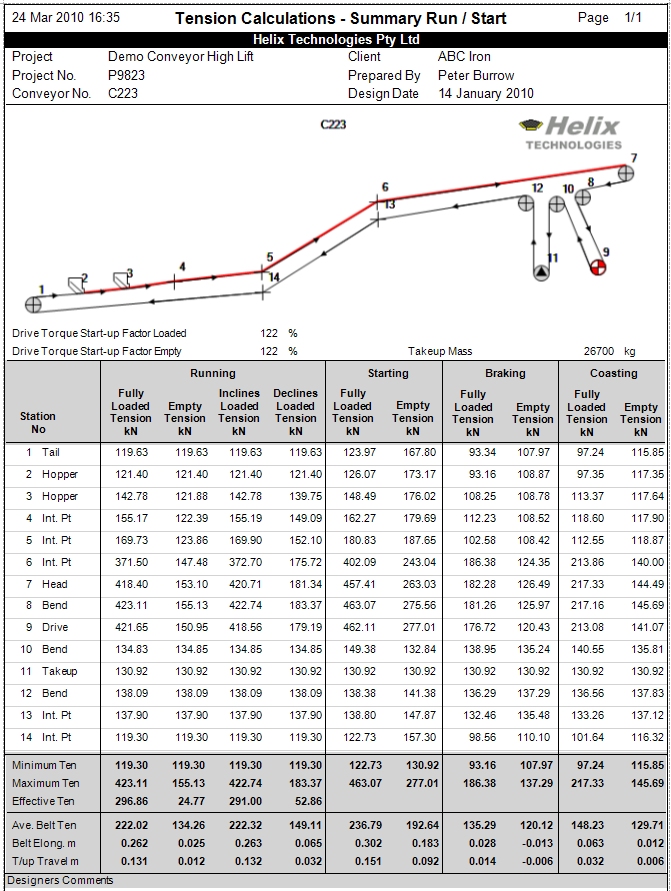

Belt Tension Summary Report

Belt Tension Summary Report Image

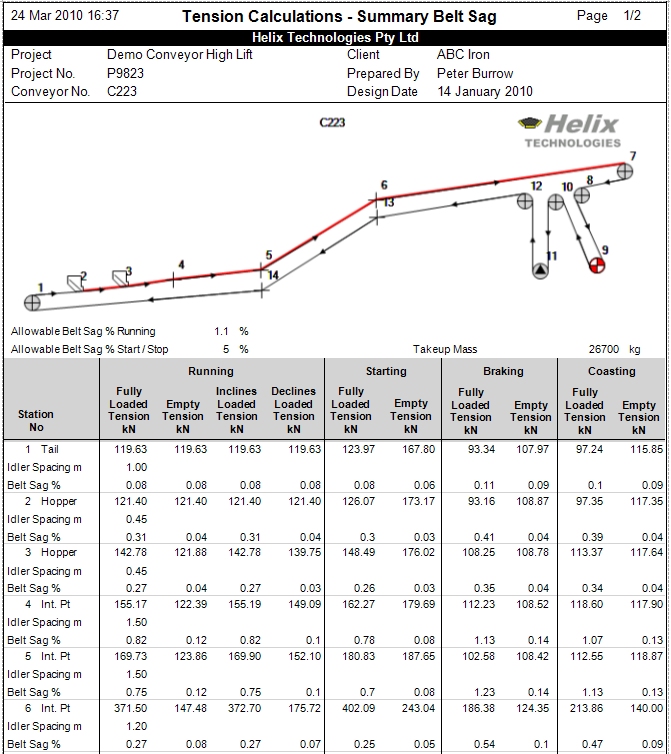

Belt Sag Summary Report

Belt Sag Summary Report Image

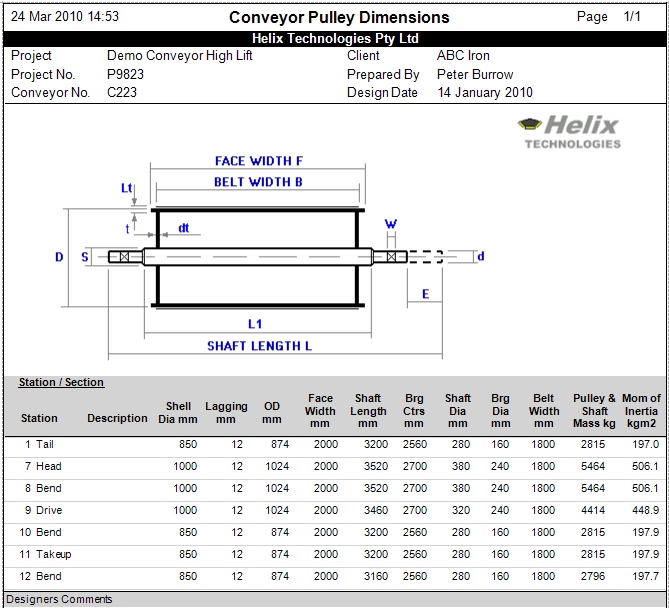

Pulley Details Report

Pulley Details Report Image

You can view a sample report by clicking the following link: Sample Design report - pdf file
