See our new Helix DeltaD Online Conveyor Pulley and Shaft Design Software at www.helixdeltad.com.au
- Online WebApp - No installation required
- Pulley Shaft Calculations to AS 1403 Standard
- Design Conveyor Pulleys and Shafts
- Calculate Shaft Hub and Bearing Size Required

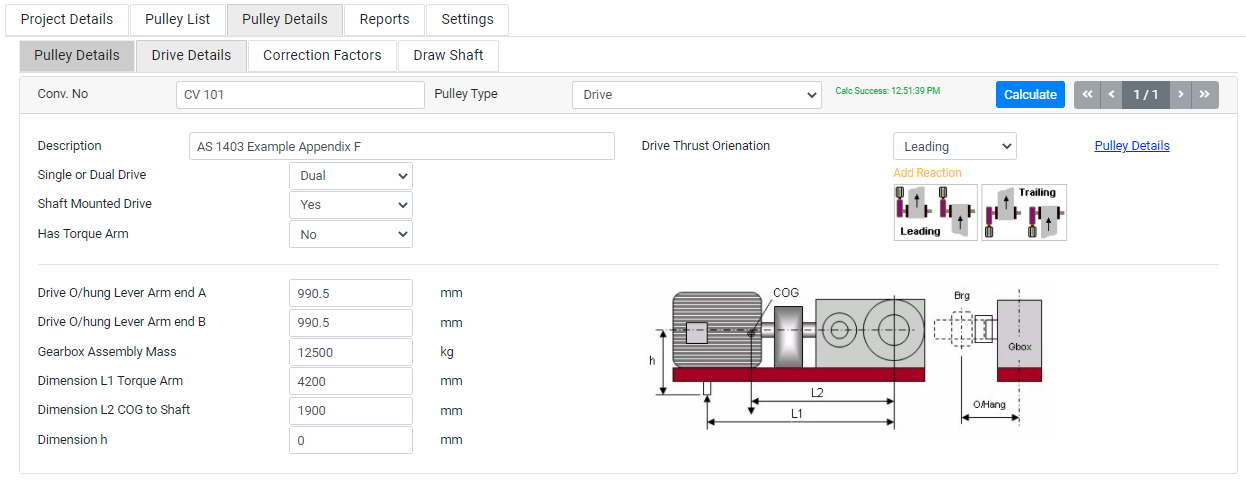

- Includes Shaft Mounted Drive overhung load calculations
- Calculate Pulley Shell thickness (uses Sitzwohl and MHEA methods)
- Calculate Pulley End-Disc thickness (uses Schmoltzi method)
- Calculates the Shaft deflection (Slope (radians) and Deflection in mm
- Store all of your conveyor shaft design projects online in a secure database

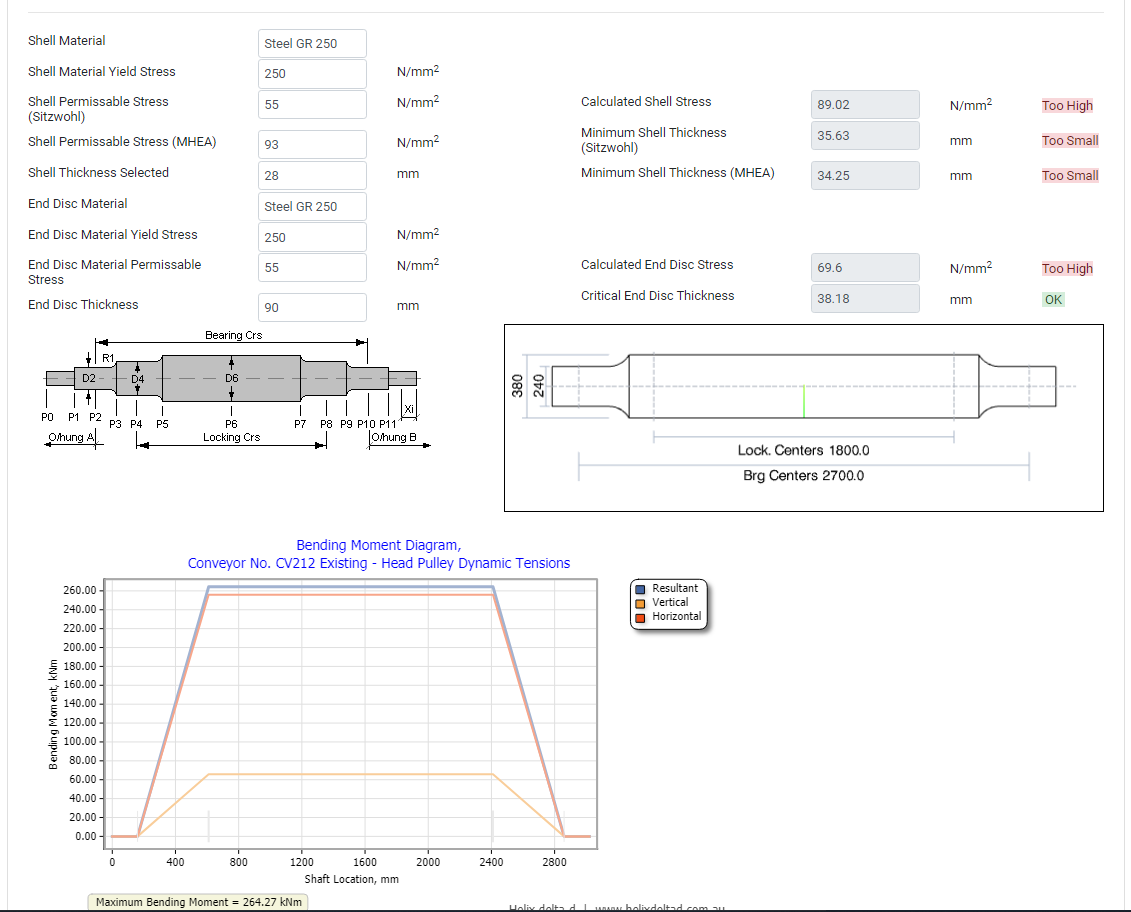

- Bending Moment Diagram Included
- Import Pulleys from the existing desktop Helix DeltaD .xml conveyor files
- Print Reports to PDF

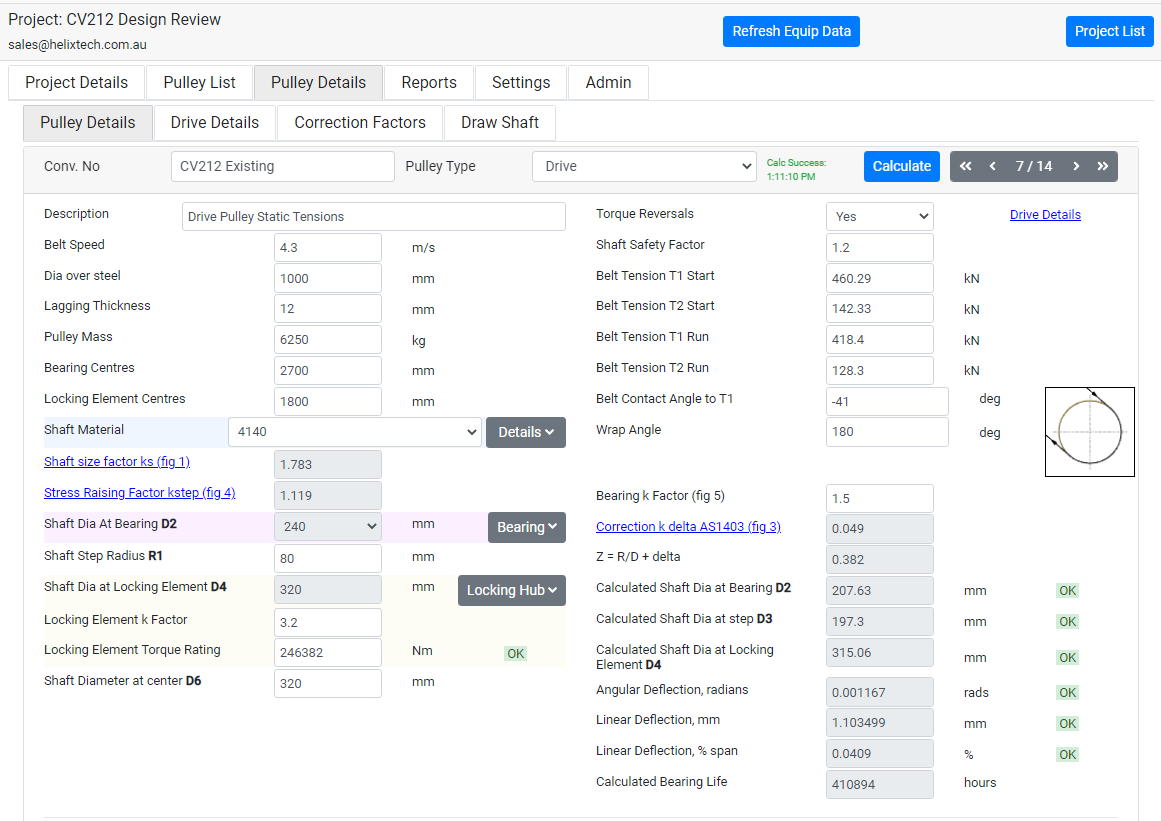

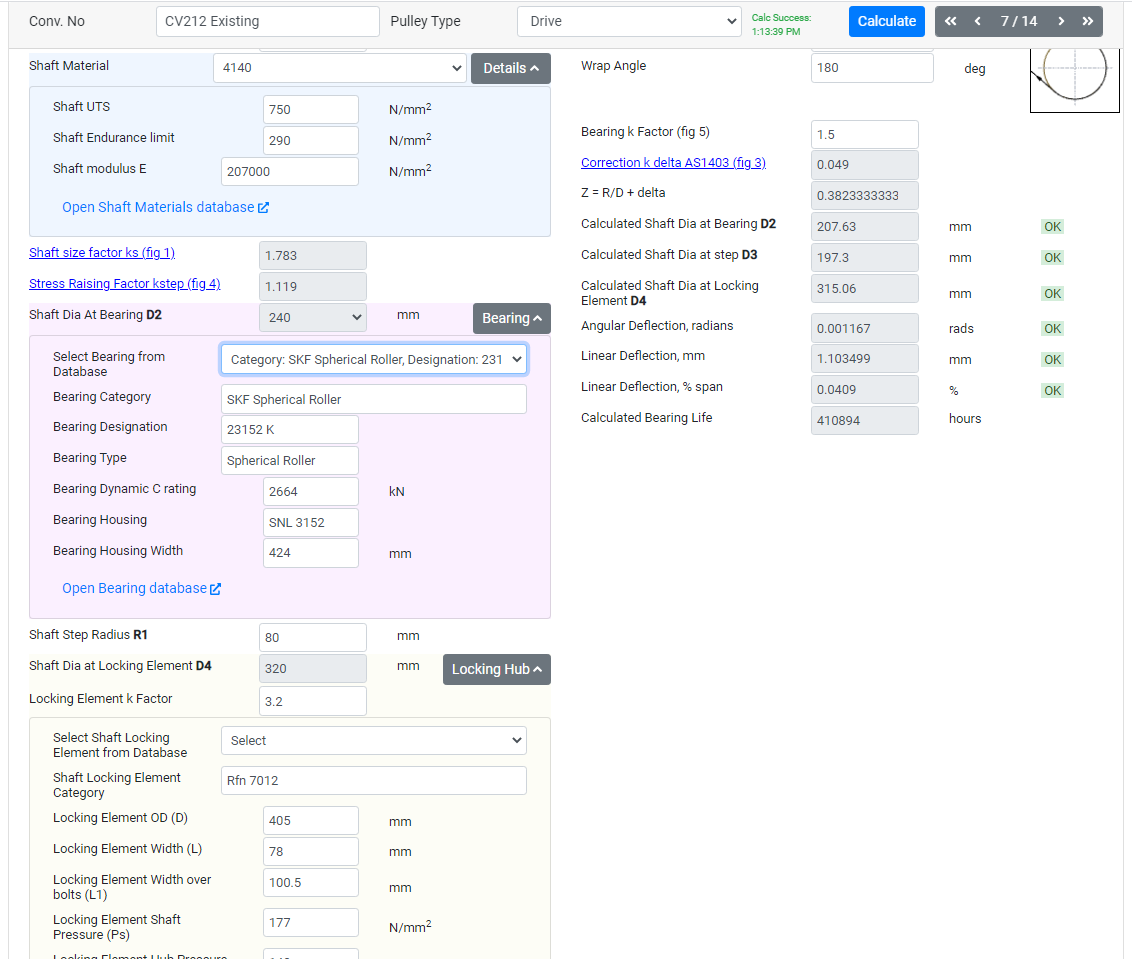

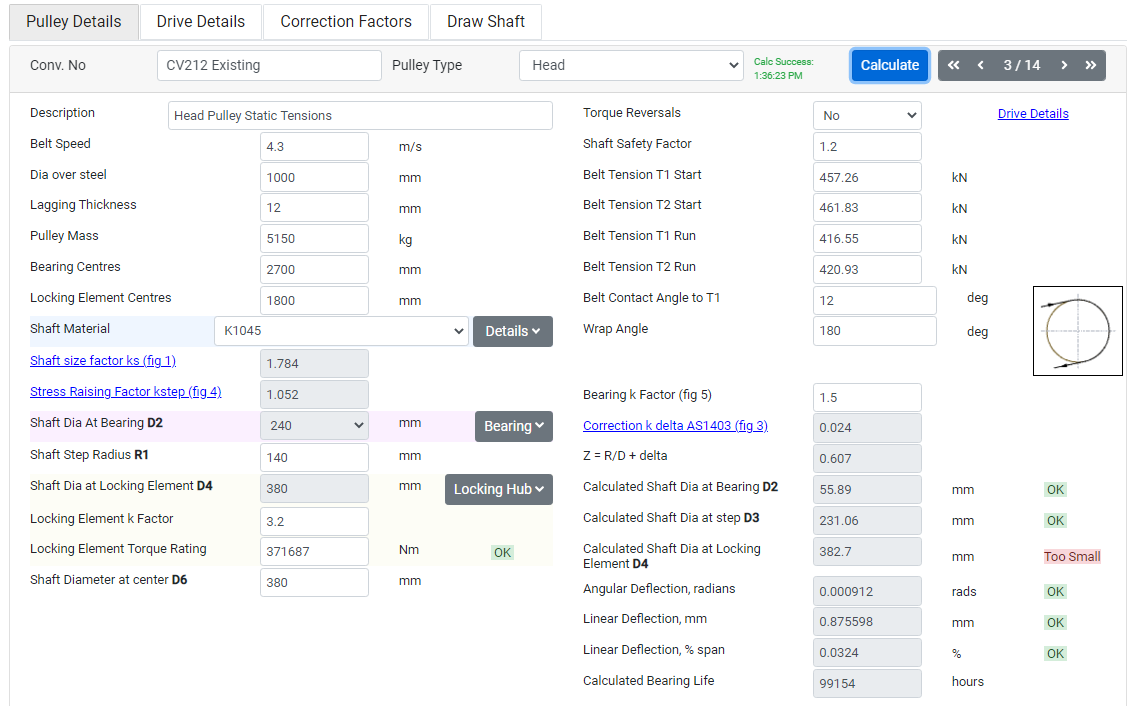

Screen shots from Helix deltaD
The Helix deltaD Pulley and Shaft Design program requires users to register for the deltaD program.
Do not miss this new opportunity to do detailed conveyor pulley and shaft design - click the button below to view
